TeSys

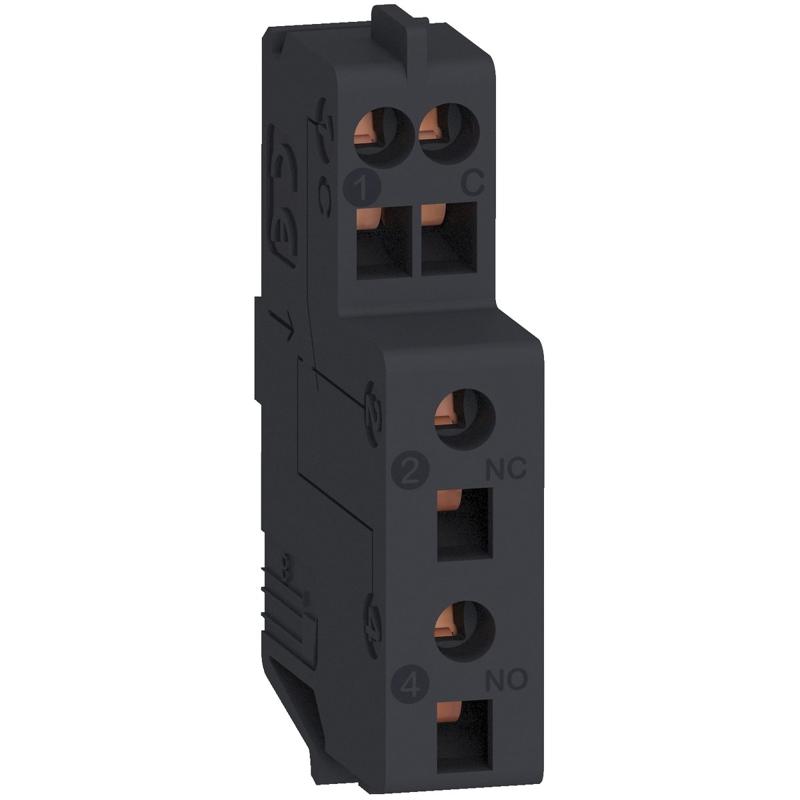

Schneider Electric catalog image for this SKU; may represent the product family.
AUXILIARY CONTACT
Auxiliary contact, TeSys GV4, 690VAC, 1 NO/NC
SKU GV4AE11Schneider Electric GV4AE11 is a auxiliary contact in the TeSys range. Key specifications include auxiliary contacts: 1 NO/NC; quantity per set: Set of 1; mounting mode: Internal mounting.
1 NO/NCAuxiliary contacts
Set of 1Quantity per set
Internal mountingMounting mode
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 17, 2026.
| Product reference | GV4AE11 |
|---|---|
| Range | TeSys |
| Device short name | GV4AE |
| Product or component type | Auxiliary contact |
| Device application | Signalling |
| Range compatibility | TeSys TeSys GV4 TeSys TeSys BV4 |
| Auxiliary contact composition | 1 NO/NC |
| [Ue] rated operational voltage | <= 690 V |
| [Ith] conventional free air thermal current | 5 A conforming to IEC 60947-5-1 5 A conforming to CSA C22.2 No 14 5 A conforming to UL 508 |
| Mounting mode | Internal mounting |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-1 |
| [Ie] rated operational current | 5 A <= 690 V AC-12 conforming to IEC 60947-5-1 5 A <= 48 V AC-15 conforming to IEC 60947-5-1 4 A 110/127 V AC-15 conforming to IEC 60947-5-1 3 A 220/240 V AC-15 conforming to IEC 60947-5-1 2.5 A 380...440 V AC-15 conforming to IEC 60947-5-1 0.11 A 660/690 V AC-15 conforming to IEC 60947-5-1 5 A <= 24 V DC-12 conforming to IEC 60947-5-1 2.5 A 48 V DC-12 conforming to IEC 60947-5-1 0.6 A 110/127 V DC-12 conforming to IEC 60947-5-1 0.3 A 250 V DC-12 conforming to IEC 60947-5-1 2.5 A <= 24 V DC-12 conforming to IEC 60947-5-1 1.2 A 48 V DC-12 conforming to IEC 60947-5-1 0.35 A 110/127 V DC-12 conforming to IEC 60947-5-1 0.05 A 250 V DC-12 conforming to IEC 60947-5-1 1 A <= 24 V DC-12 conforming to IEC 60947-5-1 0.2 A 48 V DC-12 conforming to IEC 60947-5-1 0.05 A 110/127 V DC-12 conforming to IEC 60947-5-1 0.03 A 250 V DC-12 conforming to IEC 60947-5-1 |
| Rated power in VA | 120 VA AC-12 at 24 V conforming to IEC 60947-5-1 240 VA AC-12 at 48 V conforming to IEC 60947-5-1 635 VA AC-12 at 110/127 V conforming to IEC 60947-5-1 1200 VA AC-12 at 230/240 V conforming to IEC 60947-5-1 2200 VA AC-12 at 380/440 V conforming to IEC 60947-5-1 3450 VA AC-12 at 660/690 V conforming to IEC 60947-5-1 |
| Rated power in W | DC-12: 120 W 24 V conforming to IEC 60947-5-1 DC-12: 120 W 48 V conforming to IEC 60947-5-1 DC-12: 66 W 110 V conforming to IEC 60947-5-1 DC-12: 75 W 250 V conforming to IEC 60947-5-1 |
| Associated fuse rating | 5 A gG at 690 V conforming to IEC 60947-5-1 |
| Minimum switching current | 2 mA |
| Minimum switching voltage | 17 V |
| Mechanical durability | 40000 cycles |
| Connections - terminals | Spring terminals 1 0.5…1.5 mm² - cable stiffness: flexible without cable end |
| Wire stripping length | 8 mm |
| Quantity per set | Set of 1 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
