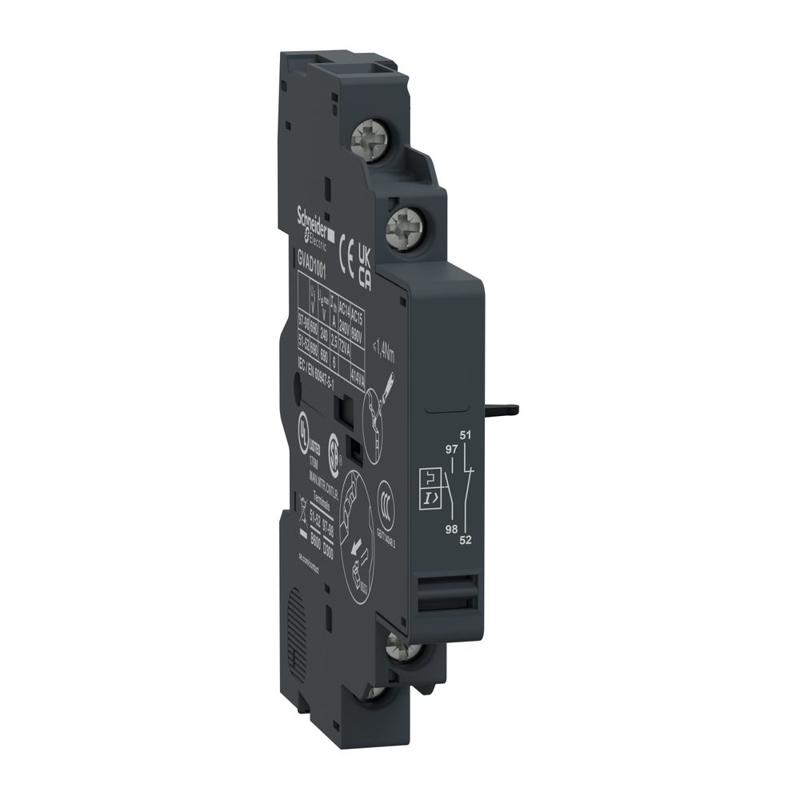

TeSysSchneider Electric TeSys GV2 & GV3 - auxiliary contact - 1 NC + 1 NO (fault), manufacturer catalog image

Schneider Electric catalog image for this SKU; may represent the product family.

AUXILIARY CONTACT BLOCK

TeSys GV2 & GV3 - auxiliary contact - 1 NC + 1 NO (fault)

SKU GVAD1001

Schneider Electric GVAD1001 is a auxiliary contact block in the TeSys range. Key specifications include contact configuration: 1 NO + 1 NC; operational voltage: 48...690 V AC; net weight: 0.055 kg.

1 NO + 1 NCContact configuration
48...690 V ACOperational voltage
0.055 kgNet weight
Request a quote ↗View on Schneider Electric Technical specifications ↓
PRODUCT DATA

Technical specifications

Source: Schneider Electric product catalog.
Verified September 18, 2026.

GVAD1001 — selected manufacturer specifications
Product referenceGVAD1001
RangeTeSys TeSys Deca
Device short nameGVAD
Product or component typeAuxiliary contact block
Product compatibilityGV2P GV2LE GV3L GV2ME GV2RT GV3P GV2L
Mounting locationLeft side
Auxiliary contacts operationFault signal 1 NO
Pole contact composition1 NO + 1 NC
[Ui] rated insulation voltage690 V conforming to IEC 60947-1 300 V conforming to UL 508 300 V conforming to CSA C22.2 No 14
[Ue] rated operational voltage48...690 V AC 24...240 V DC
[Ith] conventional free air thermal current6 A 2.5 A for fault signalling
Mechanical durability100000 cycles
Minimum switching current5 mA
Minimum switching voltage17 V
Protection typeGB2CB... circuit breaker GG fuse 10 A
Rated operational power in VA300 VA at 48 V AC-15 - electrical durability: 100000 cycles 414 VA at 690 V AC-15 - electrical durability: 100000 cycles 500 VA at 110…127 V AC-15 - electrical durability: 100000 cycles 500 VA at 500 V AC-15 - electrical durability: 100000 cycles 650 VA at 440 V AC-15 - electrical durability: 100000 cycles 720 VA at 230…240 V AC-15 - electrical durability: 100000 cycles 850 VA at 380…415 V AC-15 - electrical durability: 100000 cycles 36 VA at 24 V AC-14 - electrical durability: 1000 cycles 48 VA at 48 V AC-14 - electrical durability: 1000 cycles 72 VA at 110…127 V AC-14 - electrical durability: 1000 cycles
Rated operational power in W120 W at 240 V DC-13 - electrical durability: 100000 cycles 140 W at 110 V DC-13 - electrical durability: 100000 cycles 140 W at 24 V DC-13 - electrical durability: 100000 cycles 180 W at 60 V DC-13 - electrical durability: 100000 cycles 240 W at 48 V DC-13 - electrical durability: 100000 cycles 15 W at 48 V DC-13 - electrical durability: 1000 cycles 24 W at 24 V DC-13 - electrical durability: 1000 cycles 9 W at 60 V DC-13 - electrical durability: 1000 cycles
Height89 mm
Width9.3 mm
Depth66 mm
Net weight0.055 kg
ColourDark grey
Environmental characteristicNormal environment
Product certificationsUKCA

For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
