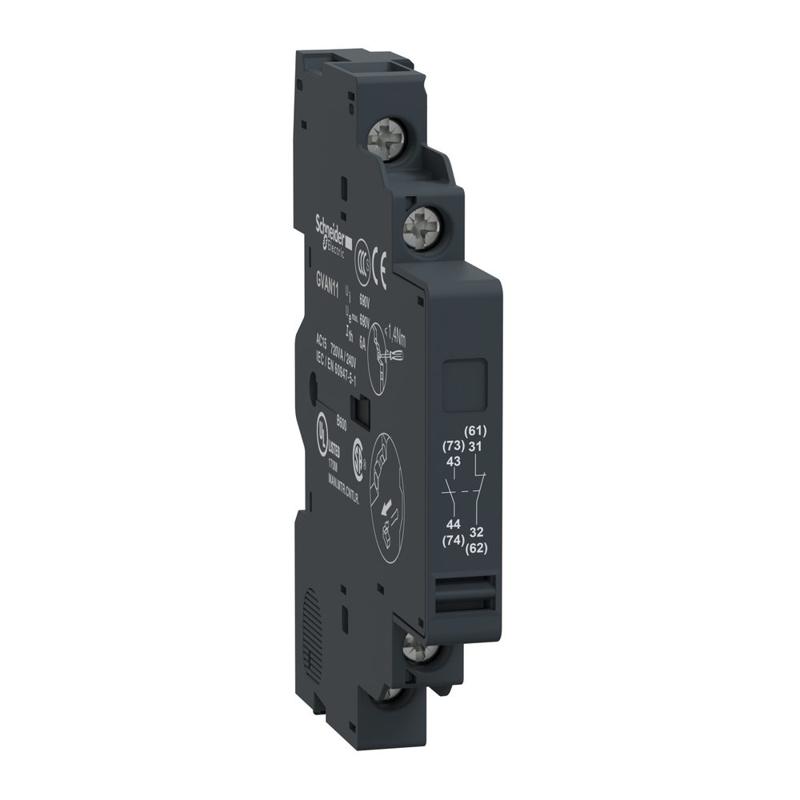

TeSysSchneider Electric TeSys GV2 & GV3 - auxiliary contact block - 1 NO + 1 NC, manufacturer catalog image

Schneider Electric catalog image for this SKU; may represent the product family.

AUXILIARY CONTACT BLOCK

TeSys GV2 & GV3 - auxiliary contact block - 1 NO + 1 NC

SKU GVAN11

Schneider Electric GVAN11 is a auxiliary contact block in the TeSys range. Key specifications include contact configuration: 1 NO + 1 NC; operational voltage: 48...690 V AC; net weight: 0.05 kg.

1 NO + 1 NCContact configuration
48...690 V ACOperational voltage
0.05 kgNet weight
Request a quote ↗View on Schneider Electric Technical specifications ↓
PRODUCT DATA

Technical specifications

Source: Schneider Electric product catalog.
Verified September 18, 2026.

GVAN11 — selected manufacturer specifications
Product referenceGVAN11
RangeTeSys TeSys Deca
Device short nameGVAN
Product or component typeAuxiliary contact block
Product compatibilityGV2P GV2L GV2ME GV2LE GV2RT GV2LM GV3P GV3L
Mounting locationLeft side
Pole contact composition1 NO + 1 NC
[Ui] rated insulation voltage600 V conforming to UL 508 690 V conforming to IEC 60947-1 600 V conforming to CSA C22.2 No 14
[Ue] rated operational voltage48...690 V AC 24...240 V DC
[Ith] conventional free air thermal current6 A
Mechanical durability100000 cycles
Minimum switching current5 mA
Minimum switching voltage17 V
Protection typeGB2CB... circuit breaker GG fuse 10 A
Rated operational power in VA300 VA at 48 V AC-15 - electrical durability: 100000 cycles 414 VA at 690 V AC-15 - electrical durability: 100000 cycles 500 VA at 110…127 V AC-15 - electrical durability: 100000 cycles 500 VA at 500 V AC-15 - electrical durability: 100000 cycles 650 VA at 440 V AC-15 - electrical durability: 100000 cycles 720 VA at 230…240 V AC-15 - electrical durability: 100000 cycles 850 VA at 380…415 V AC-15 - electrical durability: 100000 cycles
Rated operational power in W120 W at 240 V DC-13 - electrical durability: 100000 cycles 140 W at 110 V DC-13 - electrical durability: 100000 cycles 140 W at 24 V DC-13 - electrical durability: 100000 cycles 180 W at 60 V DC-13 - electrical durability: 100000 cycles 240 W at 48 V DC-13 - electrical durability: 100000 cycles
Tightening torque1.4 N.m screw clamp terminals
Height89 mm
Width9.3 mm
Depth66 mm
Net weight0.05 kg
ColourDark grey
Environmental characteristicNormal environment
StandardsEN/IEC 60947-5-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-1:Clause 30.2 IEC/EN 60335-2-40:Annex JJ
Product certificationsCB Scheme CE UKCA CCC cULus EAC

For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
