EMERGENCY STOP SWITCH DISCONNECTOR

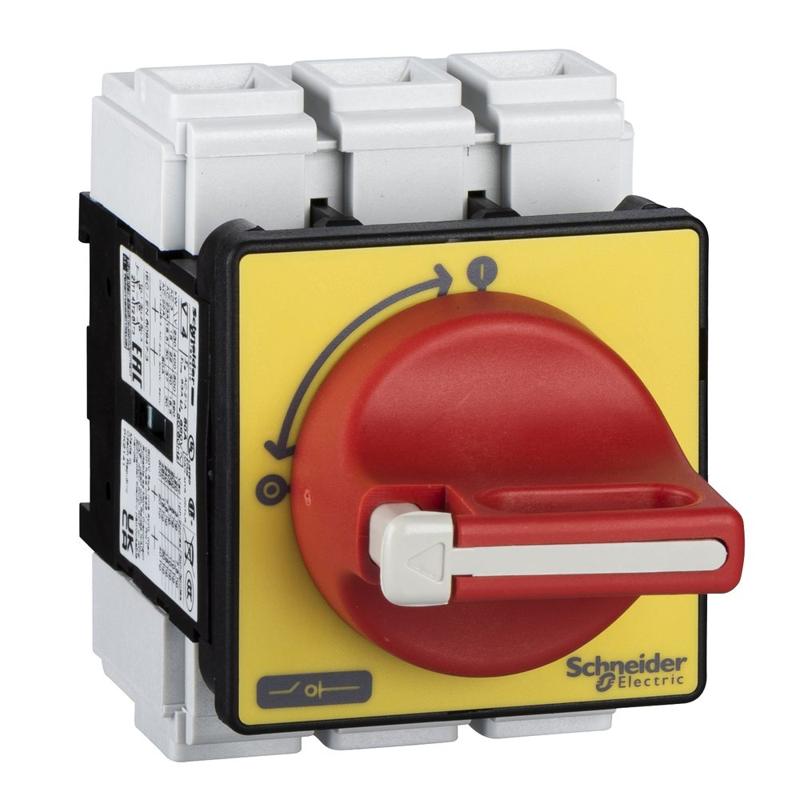

Switch disconnector,TeSys Control,for ON/emergency stop,80A,4 screws fixing,for mounting on door
SKU VCF4Schneider Electric VCF4 is a emergency stop switch disconnector in the TeSys VARIO range. Key specifications include operational current: 57 A AC-23 Ue: 400 V; poles: 3P; mounting support: Handle: door.
57 A AC-23 Ue: 400 VOperational current
3PPoles
Handle: doorMounting Support
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | VCF4 |
|---|---|
| Range | TeSys |
| Product Name | TeSys VARIO |
| Device Short Name | VCF |
| Product Type | Emergency stop switch disconnector |
| Device Composition | Switch Handle |
| Mounting Support | Handle: door Switch: door |
| Mounting Method | By 4 screws for handle |
| Performance Level | High performance |
| Number of Poles | 3P |
| Contact Type and Composition | 3 NO |
| [Ue] IEC Rated Operational Voltage | 690 V AC 50/60 Hz |
| IEC Rated Operational Power in W | 18.5 kW at 690 V (AC-3) 15 kW at 230...240 V (AC-3) 22 kW at 400...415 V (AC-3) 30 kW at 500 V (AC-3) 30 kW at 690 V (AC-23A) 37 kW at 500 V (AC-23A) 18.5 kW at 230...240 V (AC-23A) 30 kW at 400...415 V (AC-23A) |
| [Ie] Rated Operational Current | 57 A AC-23 Ue: 400 V |
| [Ith] Conventional Free Air Thermal Current | 80 A |
| [Ithe] Conventional Enclosed Thermal Current | 63 A |
| Making Capacity ( I Rms) | 800 A at 400 V AC-21A 800 A at 400 V AC-22A 800 A at 400 V AC-23A |
| Breaking Capacity | 640 A at 400 V (AC-21A) 640 A at 400 V (AC-22A) 640 A at 400 V (AC-23A) |
| Rated Conditional Short Circuit Current | 10 kA at 400 V - associated fuse 80 A aM 10 kA at 400 V - associated fuse 80 A gG |
| [Icm] Rated Short Circuit Making Capacity | 2.1 kA at 400 V at Ipeak |
| [Icw] Rated Short Time Withstand Current | 960 A at 400 V duration: 1 s |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Suitability for Isolation | Yes |
| Network Type | DC AC |
| Intermittent Duty Class | 30 |
| Control Type | Rotary handle |
| Rotary Handle Mounting Style | Direct |
| Handle Color | Red |
| Handle Front Plate Color | Yellow |
| Rotary Handle Padlocking | 1 to 3 padlocks 4…8 mm |
| Marking | 0 - 1 |
| Mechanical Durability | 30000 cycles |
| Electrical Durability | 30000 cycles AC-21 30000 cycles DC-1...5 |
| IEC Terminal Connection | Power circuit: screw clamp terminals25 mm² - solid Power circuit: screw clamp terminals16 mm² - flexible - with cable end |
| Tightening Torque | Power circuit: 4 N.m - on screw clamp terminals |
| Base Dimension | 60 x 60 mm |
| Height | 83 mm |
| Width | 60 mm |
| Product Weight | 0.56 kg |
| Standards | IEC 60947-3 |
| Product Certifications | CCC GL UL CSA UKCA |
| Degree of Protection | IP20 conforming to IEC 60529 IP65 |
| Protective Treatment | TC |
| Mechanical Robustness | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient Air Temperature for Operation | -20…50 °C |
| Fire Resistance | 960 °C conforming to IEC 60695-2-1 |
| Compatibility Code | Main switch disconnector |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
