TeSys Mini-VARIO

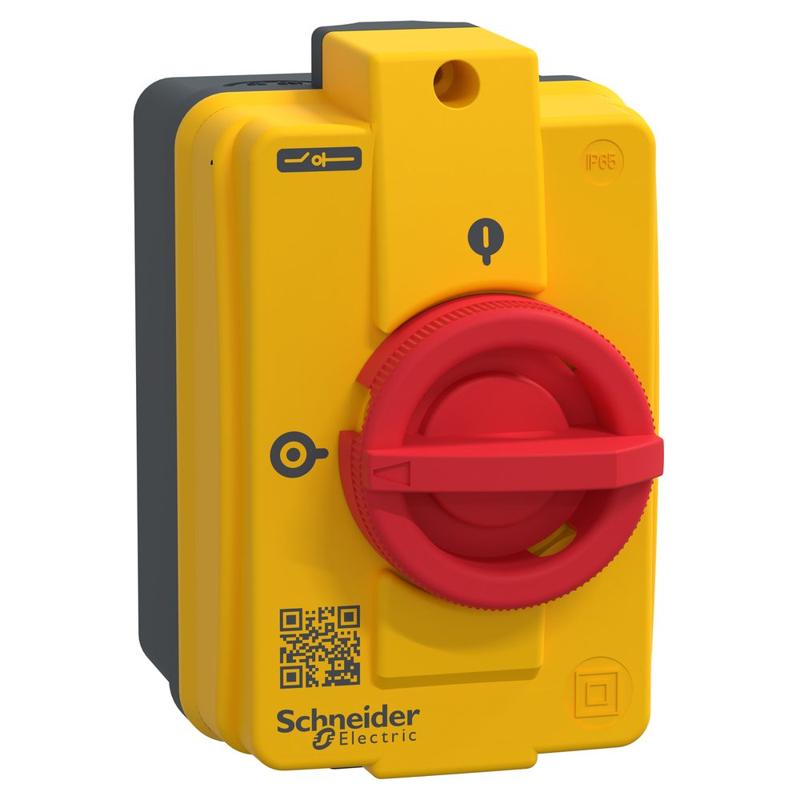

Schneider Electric catalog image for this SKU; may represent the product family.
EMERGENCY STOP SWITCH DISCONNECTOR
Enclosed switch disconnector,TeSys Control,for ON/emergency stop,16A,IP65,compact size
SKU VCFN20GESchneider Electric VCFN20GE is a emergency stop switch disconnector in the TeSys Mini-VARIO range. Key specifications include operational current: 11 A (AC-23A) at 400 V; poles: 3P; operational voltage: 690 V AC.
11 A (AC-23A) at 400 VOperational current
3PPoles
690 V ACOperational voltage
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | VCFN20GE |
|---|---|
| Range | TeSys |
| Product name | TeSys Mini-VARIO |
| Device short name | VCFN |
| Product or component type | Emergency stop switch disconnector |
| Performance level | Standard |
| Poles description | 3P |
| Control type | Rotary handle |
| Handle colour | Red |
| Handle front plate colour | Yellow |
| Rotary handle padlocking | 1 to 3 padlocks 4…8 mm |
| Marking | 0 - 1 |
| [Ue] rated operational voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ithe] conventional enclosed thermal current | 16 A |
| [Ie] rated operational current | 11 A (AC-23A) at 400 V |
| Rated operational power in W | 5.5 kW at 400 V (AC-23) 4 kW at 400 V (AC-3) |
| Intermittent duty class | 30 |
| Making capacity ( I Rms) | 200 A at 400 V AC-21A 200 A at 400 V AC-22A 200 A at 400 V AC-23A |
| [Icm] rated short-circuit making capacity | 0.5 kA at 400 V at Ipeak |
| [Icw] rated short-time withstand Rms current | 140 A at 400 V duration: 1 s |
| Rated conditional short-circuit current | 6 kA at 400 V - associated fuse 20 A aM 6 kA at 400 V - associated fuse 20 A gG |
| Breaking capacity | 200 A at 400 V (AC-21A) 200 A at 400 V (AC-22A) 200 A at 400 V (AC-23A) |
| Mechanical durability | 50000 cycles |
| Electrical durability | 30000 cycles DC-1...5 50000 cycles AC-21 |
| Suitability for isolation | Yes |
| Connections - terminals | Control circuit: connector cable(s) 4 mm² flexible with cable end Control circuit: connector cable(s) 4 mm² solid |
| Tightening torque | Control circuit: 0.7 N.m - on connector |
| Fire resistance | 960 °C conforming to IEC 60595-2-1 |
| handle front plate dimension | 60 x 60 mm |
| Height | 131 mm |
| Width | 82.5 mm |
| Depth | 106 mm |
| Net weight | 0.422 kg |
| Standards | IEC 60947-4-1 |
| Protective treatment | TC |
| Mechanical robustness | Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -20…50 °C |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
