Harmony XA2
Schneider Electric catalog image for this SKU; may represent the product family.

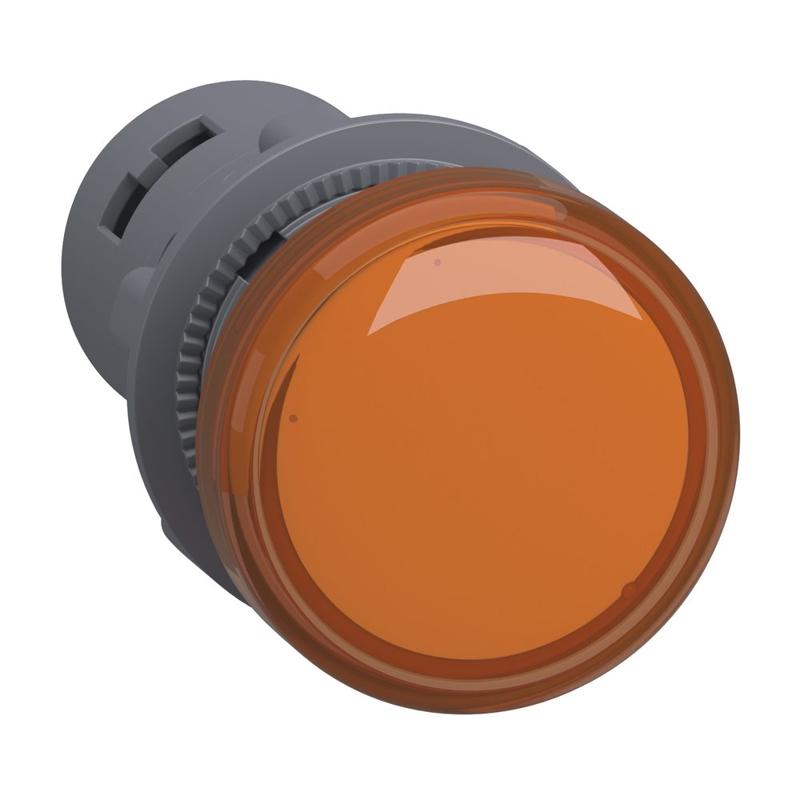

MONOLITHIC PILOT LIGHT
Pilot light, plastic, amber, Ø 22 mm, with integral LED, 220…230V AC, Anti-interference
SKU XA2EVM5LCSchneider Electric XA2EVM5LC is a monolithic pilot light in the Harmony XA2 range. Key specifications include ip protection: IP65 conforming to IEC 60529; net weight: 0.02 kg; product range: Harmony XA2.
IP65 conforming to IEC 60529IP protection
0.02 kgNet weight
Harmony XA2Product range
PRODUCT DATA
Technical specifications
Source: Schneider Electric product catalog.
Verified September 18, 2026.
| Product reference | XA2EVM5LC |
|---|---|
| Range of product | Harmony XA2 |
| Product or component type | Monolithic pilot light |
| Device short name | XA2 |
| Mounting diameter | 22.5 mm |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Amber |
| Light source | COB clustered LED |
| Bulb base | No bulb |
| [Us] rated supply voltage | 220...230 V |
| Terminals description ISO n°1 | (X1-X2)PL |
| Device mounting | Fixing hole - diameter: 22.5 mm +/- 0.2 conforming to IEC 60947-5-1 |
| Fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| Fixing mode | Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m) |
| Marking | CE CCC |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Tightening torque | 0.8…1 N.m conforming to IEC 60947-1 |
| Shape of screw head | Cross compatible with Philips No 2 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] rated insulation voltage | 400 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Signalling type | Steady |
| Supply voltage limits | 0.8…1.2 V AC |
| Current consumption | <= 20 mA |
| Service life | 40000 h at rated voltage and 25 °C |
| Height | 29 mm |
| Width | 29 mm |
| Depth | 53 mm |
| Net weight | 0.02 kg |
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…70 °C |
| Overvoltage category | Class I conforming to IEC 61140 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK05 |
| Standards | IEC 60947-5-1 IEC 60947-1 GB 14048.5 GB 14048.1 IEC 60529 IEC 50102 |
| Product certifications | CCC CE |
| Vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
For complete electrical ratings, applicable standards, connection requirements and installation instructions, consult the official Schneider Electric reference ↗.
